Screw Compressor

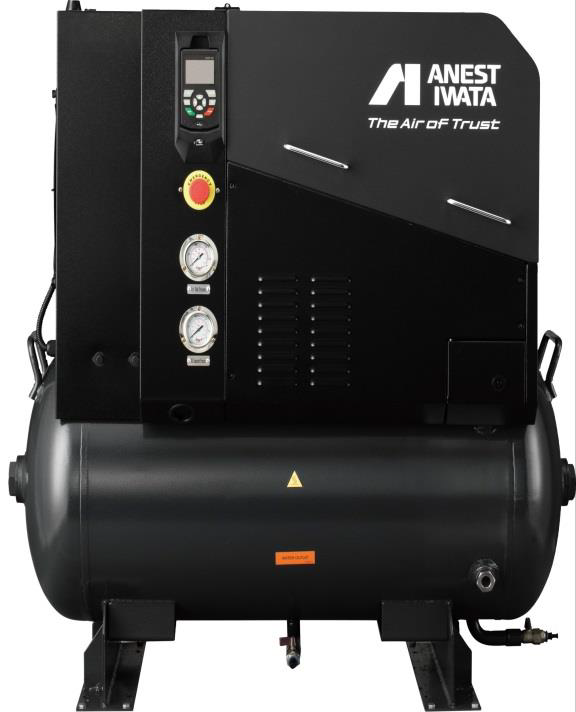

LRST – VFD MODEL
Description
- Most efficient – LRST Machine has a wide operating band from 25% to 100% speed, making it one of the most efficient machines on the market.
- Low Energy Package Power – Featuring the latest oil cooled IP65 permanent motor with increased efficiency over an IE3 motor. The motor has a high operating temperature of 180 degree centigrade to ensure any motor demagnetization does not occur.
- Ultra-Quite – The machine have a low operating noise of 68dB(A).
- Constant Pressure – Vent to achieve constant pressure state, reflect the true sense of energy saving
Easy to maintain – A simple flip top design means that all components are easily accessible for maintenance.
- Air end Life – Air end designed life is 1,00,000 hrs, however we recommend overhauling in 30,000 hrs.
Technical Specifications
Technical Specifications
| Model | KW | HP | Capacity (m³/min) | Capacity (CFM) | Pressure (Bar) | Noise Level (dB) | Dimensions (mm) | Tank Size (Ltr) | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| LRST-7503-415 | 7.5 | 10 | 0.41 - 1.1 | 14 - 39 | 8 | 67 | 1197 X 500 X 1125 | 130 | 280 |
| LRST-7501-415 | 0.35 - 0.95 | 12 - 34 | 10 | ||||||
| LRST-1103-415 | 11 | 15 | 0.69 - 1.70 | 24 - 60 | 8 | 68 | 1197 X 605 X 1220 | 130 | 320 |
| LRST-1101-415 | 0.6 - 1.5 | 21 - 53 | 10 | ||||||
| LRST-1503-415 | 15 | 20 | 0.92 - 2.3 | 32 - 81 | 8 | 69 | 1197 X 605 X 1220 | 130 | 340 |
| LRST-1501-415 | 0.8 - 2.0 | 28 - 70 | 10 |

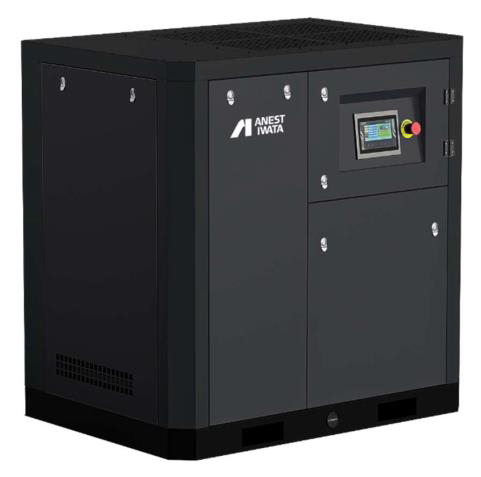

C-AIR – BELT DRIVEN
Description
BELT EFFICIENCY
HIGH EFFICIENCY AIREND
INTERCONNECTING PIPE
Multi Safety Protection
HEAVY-DUTY AIR FILTER (WITH PRE FILTER)
- Martin pulley made in USA & OPT belt made in Germany to ensure a transmission efficiency no less than 98% and a service life 3–5 times of those driving systems made locally.
HIGH EFFICIENCY AIREND
- C-Air rotor profile allows for broader sealing between the rotor, which increases efficiency by 5–10%.
- Large rotor diameter allows for high efficiency at low rotational speed, providing extended life & low noise.
- Oversized dual back-to-back taper roller bearing effectively retains the rotor position during load, unload, and starting conditions.
INTERCONNECTING PIPE
- All steel pipeline & flexible connections eliminate leakage & downtime.
Multi Safety Protection
- We exclusively use Siemens control gear to ensure that the compressor runs smoothly and stably.
- All round safety features include over-pressure, temperature, current, and motor temperature protection.
HEAVY-DUTY AIR FILTER (WITH PRE FILTER)
- Heavy Duty Air filter with pre-filter with High Efficiency & Low Pressure loss.
- Ensures stable normal operation of the machine under complicated working conditions by controlling the quality of intake air at the compressor source.
Technical Specifications
Technical Specifications
| Model | KW | HP | Discharge Connection (inch) | Capacity (CFM) | Pressure (Bar) | Noise Level (dB) | Dimensions (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|
| C-AIR 8 | 5.5 | 7.5 | RC 1/2 | 31 | 7 | 68 | 900 X 680 X 970 | 230 |
| 29 | 8 | |||||||
| 26 | 10 | |||||||
| 23 | 12.5 | |||||||
| C-AIR 10 | 7.5 | 10 | RC 1/2 | 40 | 7 | 68 | 900 X 680 X 970 | 250 |
| 37 | 8 | |||||||
| 33 | 10 | |||||||
| 30 | 12.5 | |||||||
| C-AIR 15 | 11 | 15 | RC 3/4 | 58 | 7 | 66 | 800 X 950 X 1130 | 380 |
| 55 | 8 | |||||||
| 51 | 10 | |||||||
| 44 | 12.5 | |||||||
| C-AIR 20 | 15 | 20 | RC 3/4 | 84 | 7 | 70 | 800 X 950 X 1130 | 420 |
| 80 | 8 | |||||||
| 69 | 10 | |||||||
| 63 | 12.5 | |||||||
| C-AIR 25 | 18.5 | 25 | RC 1 | 123 | 7 | 73 | 900 X 1150 X 1350 | 530 |
| 110 | 8 | |||||||
| 101 | 10 | |||||||
| 90 | 12.5 | |||||||
| C-AIR 30 | 22 | 30 | RC 1 | 138 | 7 | 73 | 900 X 1150 X 1350 | 580 |
| 127 | 8 | |||||||
| 116 | 10 | |||||||
| 102 | 12.5 | |||||||
| C-AIR 40 | 30 | 40 | RC 1 | 185 | 7 | 73 | 900 X 1150 X 1350 | 640 |
| 181 | 8 | |||||||
| 153 | 10 | |||||||
| 135 | 12.5 | |||||||
| C-AIR 50 | 37 | 50 | RC 1-1/2 | 235 | 7 | 75 | 1000 X 1300 X 1470 | 800 |
| 225 | 8 | |||||||
| 207 | 10 | |||||||
| 186 | 12.5 |
| Model | Power (HP) | Power (KW) | Piston Displacement (CFM) | Piston Displacement (LPM) | Operating Pressure (Bar) | Tank Size (Litres) | Overall Dimension (LxWxH) [mm] | Weight (Kg) | Outlet Size (Inch) |
|---|---|---|---|---|---|---|---|---|---|
| TLT30C-12-9E | 3 | 2.2 | 10.4 | 294 | 12 | 90 | 1305x440x775 | 145 | 1/2" |
| TLT30C-12-18E | 180 | 1580x475x920 | 170 | 1/2" | |||||
| TLT30C-12-22E | 220 | 1590x515x980 | 195 | 1/2" | |||||
| TLT50C-12-18E | 5 | 3.7 | 17.3 | 490 | 12 | 180 | 1580x475x925 | 180 | 1/2" |
| TLT50C-12-22E | 220 | 1590x515x990 | 205 | 1/2" | |||||
| TLT50C-12-28E | 280 | 1600x565x1040 | 235 | 3/4" | |||||
| TLT75C-12-22E | 7.5 | 5.5 | 27.3 | 773 | 12 | 220 | 1590x530x1030 | 260 | 3/4" |
| TLT75C-12-28E | 280 | 1600x570x1075 | 290 | 3/4" | |||||
| TLT75C-12-50E | 500 | 1910x670x1180 | 350 | 3/4" | |||||
| TLT100C-12-22E | 10 | 7.5 | 33.3 | 941 | 12 | 220 | 1590x565x1125 | 295 | 1/2" |
| TLT100C-12-28E | 280 | 1600x600x1170 | 315 | 3/4" | |||||
| TLT100C-12-50E | 500 | 1910x670x1275 | 380 | 3/4" | |||||
| TLT150C-12-28E | 15 | 11 | 52 | 1472 | 12 | 280 | 1600x770x1180 | 365 | 3/4" |
| TLT200C-12-50E | 500 | 1910x830x1280 | 430 | 3/4" | |||||
| TLT200D-12-50E | 20 | 15 | 72.4 | 2050 | 12 | 500 | 1910x790x1400 | 480 | 1" |

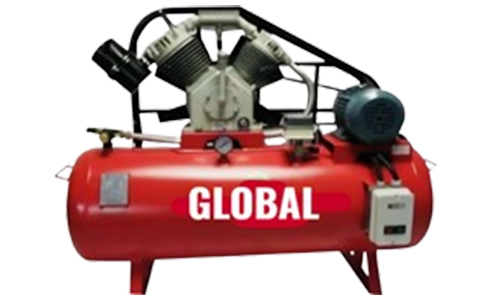

RECIPROCATING AIR COMPRESSOR
Specifications
| Motor Power (HP) | Free Air Delivery (CFM) | Working Pressure (Kg/cm²) | Tank Capacity (Liters) |
|---|---|---|---|
| 3 | 8.9 | 12 | 220 |
| 3 | 8.9 | 12 | 250 |
| 5 | 14.6 | 12 | 250 |
| 5 | 14.6 | 12 | 300 |
| 7.5 | 20.6 | 12 | 300 |
| 7.5 | 20.6 | 12 | 420 |
